 ACCUFAST Products.
P4 Printer

ACCUFAST's newest printer is it's most advanced. We've listened to our customers and created a table top printer that thinks it's a console. For example, the P4 takes pieces up to half an inch thick on a vacuum transport. It's imaging system is unique as it is made up of 2 one inch imagers. This is critical and practical when it comes to printing addresses and bar codes as well as return addresses on uneven surfaces like booklets. The paper transport is open on one side to allow extra large sheets to pass, yet completely covered for safety, cleanliness and appearance. The P4 can be integrated into a system with a variety of ACCUFAST feeders, conveyors, dryers and stackers, some linked electronically for sorting.


Nothing else looks like a P4, works like a P4 or returns its investment as fast as a P4. Just what you'd expect from ACCUFAST.

  • Size: 16” long x 12” high x 16.5” wide
  • Weight: 35 lb.
  • Production Speed: Adjustable up to 50 inches per second
  • Electrical 120 VAC 4 amps 60 Hz. 230 VAC 3 amps 50 Hz. Use a grounded outlet or Uninterruptible Power Supply
  • Document Size:
       Length: 14.33” (B4)
       Width: 3” - 14”
       Thickness: 2 sheets – 1/2”
  • Print Area: 2” split into 1” segments
  • Imaging Software included - Windows XP
  • Ethernet data connection

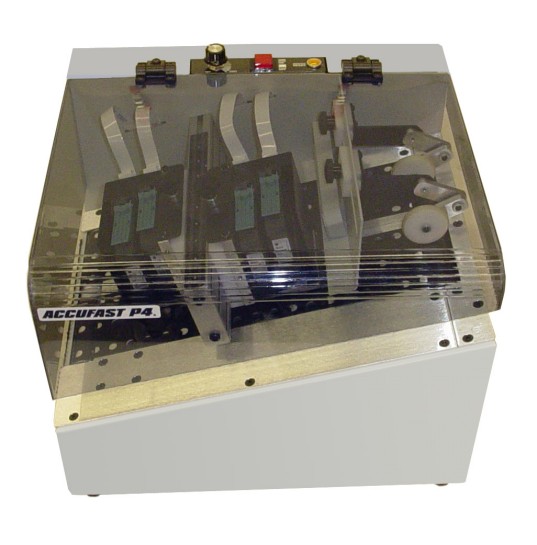

P4 Printer - top view

P4 Printer - top view

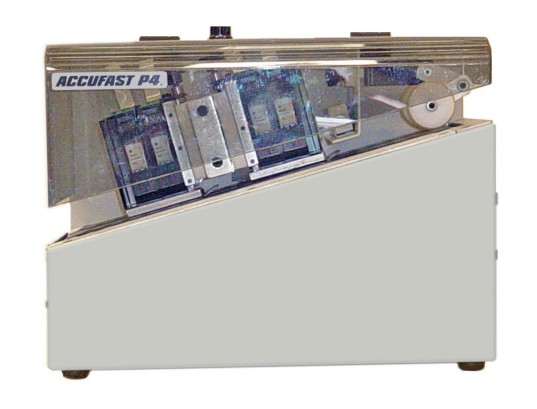

P4 Printer - straight on

P4 Printer - straight on

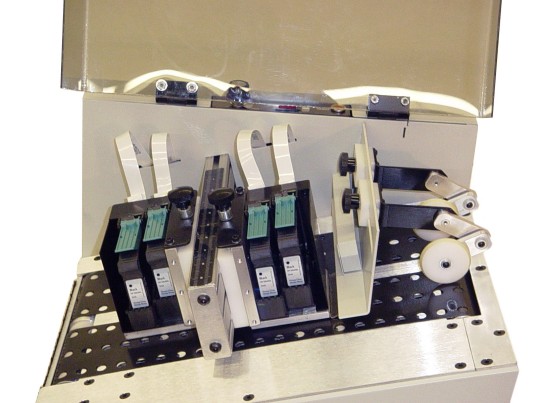

P4 Printer - close up heads

P4 Printer - close up heads

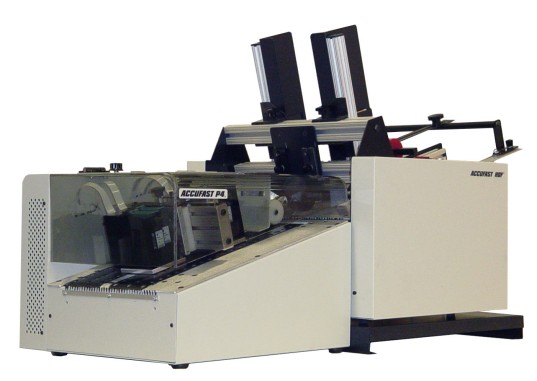

P4 Printer with HDF feeder

P4 Printer with HDF feeder

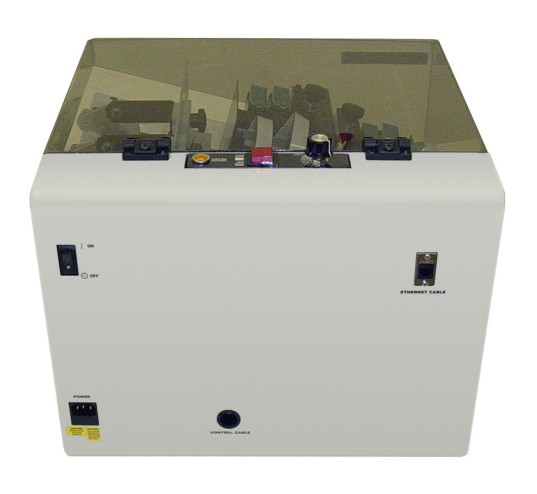

P4 Printer - back top angle

P4 Printer - back top angle

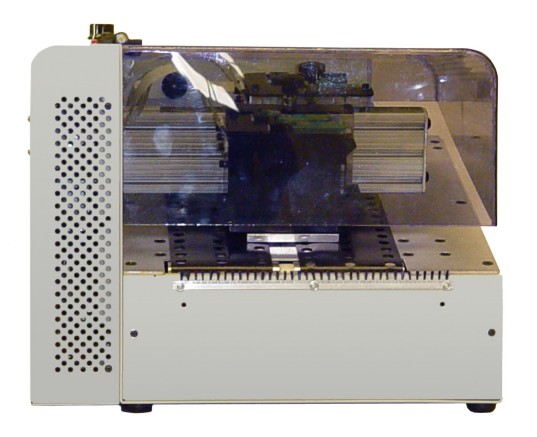

P4 Printer - back left grid

P4 Printer - back left grid

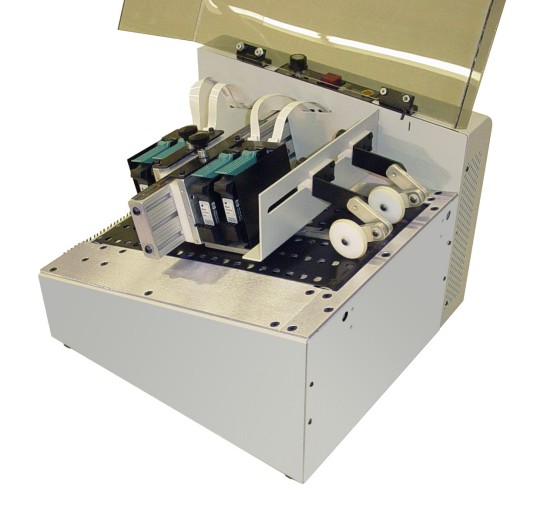

P4 Printer - lid up angle

P4 Printer - lid up angle
